| PRODUCT DESCRIPTION | |
|---|---|
| BODY | ASTM A 216 Gr WCB | WC1 | WC6 | WC9 | LCB |
| Design | Retainelas |
| HING PIN | AISI 304 | AISI 316 |
| STOP PIN | AISI 304 | AISI 316 |
| SPRING | STAINLESS STEEL |
| SEAT | EPDM |
| MFG STD | GENERALLY CONFORMING TO API 6D | API 594 |
| INSP & TEST STD | GENERALLY CONFORMING TO API 6D | API 598 |
| ENDS | FLANGE END TO ASME B16.5 RF (150#) |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) SEAT : 300 Psig (21 Kg/Cm ²) |
| SIZE RANGE | 50 MM TO 1000 MM |
Materials:
WCB, WC6, WC9 CF8, CF8M, CF3, CF3M, LCB, LCC, Hastelloy, Hastelloy C, Duplex, Monel, and others

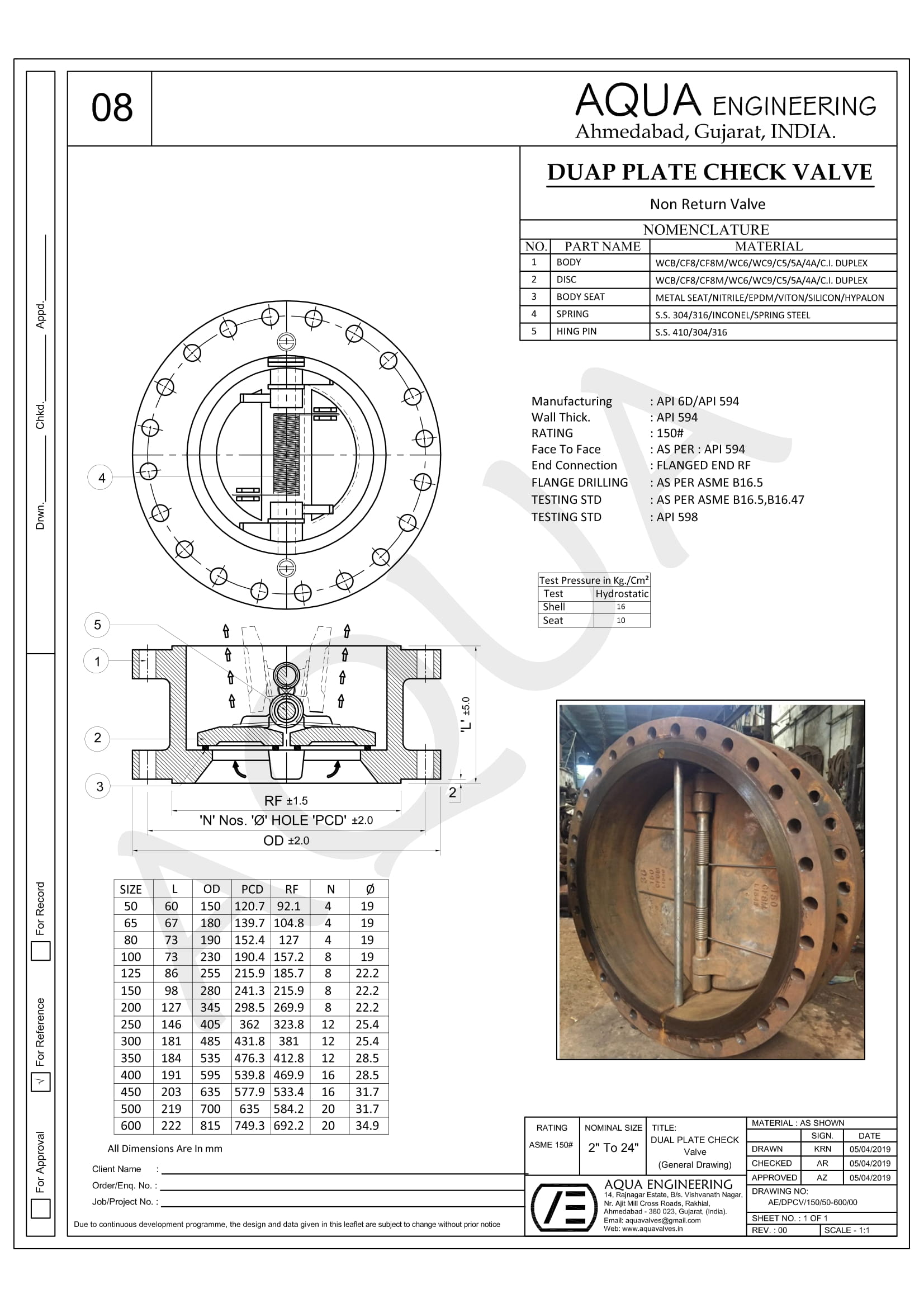

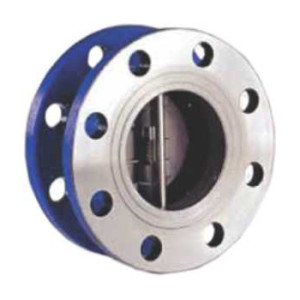

DOUBLE FLANGED CHECK VALVE – DUAL PLATE CHECK VALVE FE
